- Wheel Material: Nylon Wheel Castors with plain 304 Stainless sleeve centre
- Wheel Diameter: 125mm
- Tread Width: 32mm
- Castor Height: 161mm
- Weight Rating: 150KG
- Swept radius swivel plate and bolt hole: 103mm
- Swept radius swivel plate and bolt hole total brake: 128mm
General duty SS 125mm nylon wheel castors are the best solution for trolleys, furniture, tables that weigh up to 600kg and travel short distances. Nylon wheels are a smooth hard plastic that are well suited for carpet, smooth concrete or lino vinyl floor surfaces.
Crafted from high-quality 304 Stainless Steel, the castor forks offer top-tier corrosion resistance, making them an excellent choice for use in wash-down areas and saltwater environments. These castors boast the added advantage of featuring two full rows of ball bearings in the headrace, guaranteeing effortless swiveling and quiet operation throughout the lifespan of your equipment.

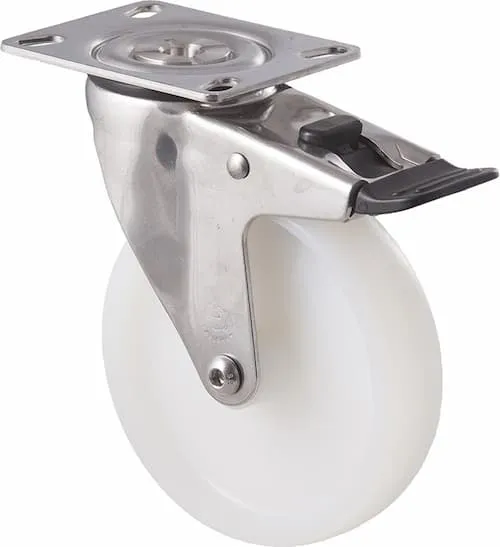

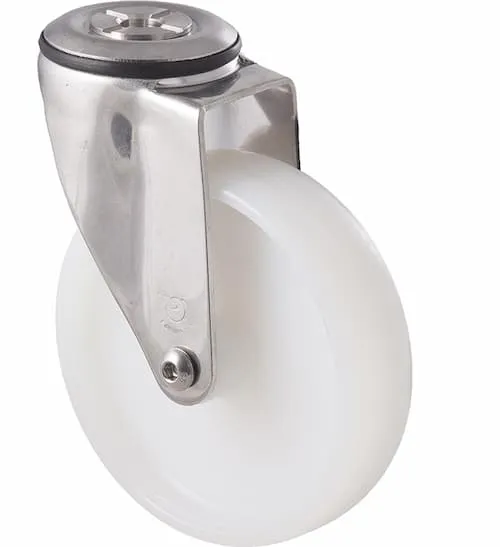

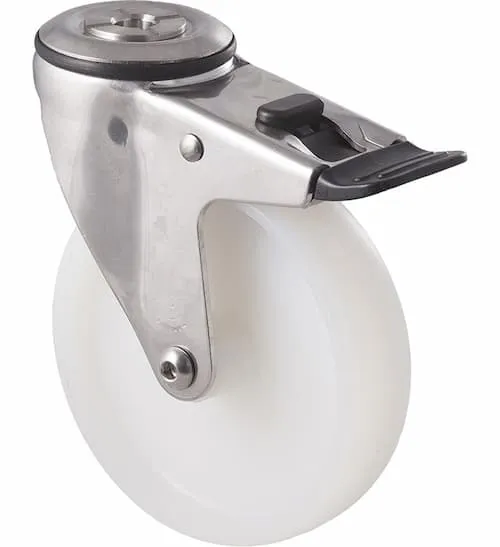

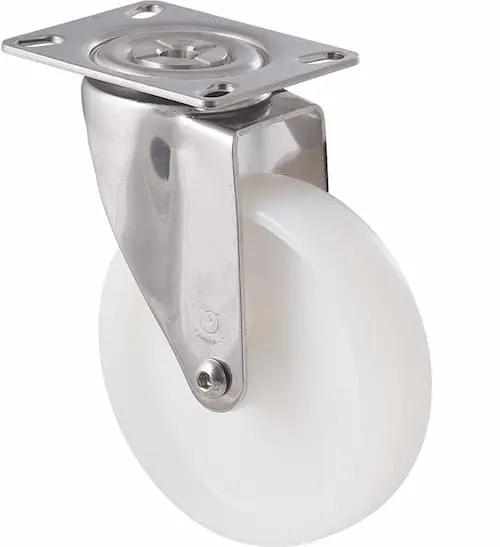

Available in swivel and fixed plate mounting styles or 12.7mm bolt hole. You can also choose the total brake option on the swivel forks to stop the castors turning and rolling when braked.
The plate castors can be fastened by screwing the 96x78mm mounting plate using the four 8mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.
The swept radius of the swivel castors is 103mm and the swept radius of the total brake castors is 128mm. The total height from the floor to the top of these castor units is 161mm and each has a maximum rolling safety load rating of 150kg.
The nylon wheels are 125mm diameter x 32mm tread width and have a 8mm bore x 40mm hub width and run on a plain SS sleeve through the centre of the wheel.
