- Trail mountain bike frame 27.5/29er carbon fiber suspension frame 15''/17''/19'' AM/XC frame,EPS technology.
- Fit 42*52mm tapered headset, BSA73 threaded bottom bracket, 31.6 seatpost, 34.9 seatpost clamp.

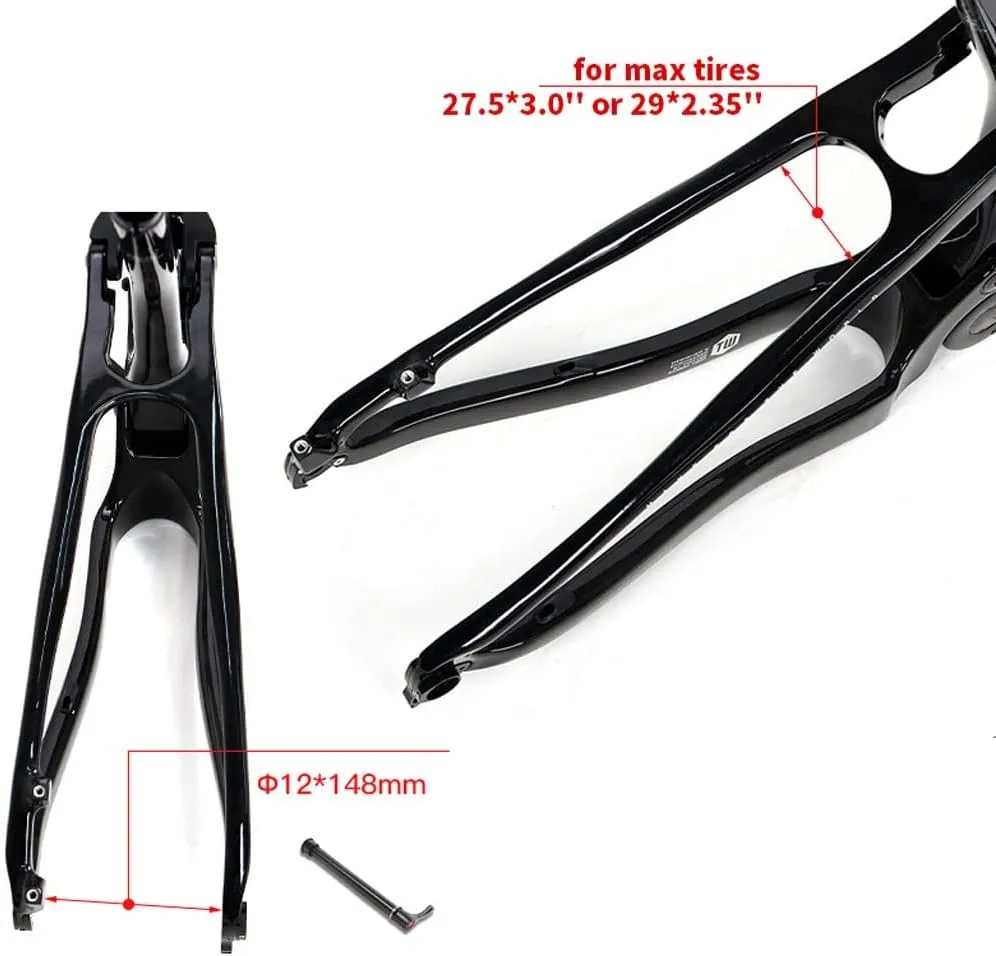

- Disc brake bike frame boost thru axle 12*148, can fit outer tire max width 27.5*3.0" or 29*2.35".
- The trail frame suitable for 165*35(38)* 24mm rear shock absorber,frame travel 120mm.
- Internal routing frame can install lift seatpost, support direct mount front pull front derailleur,UV laser marker.

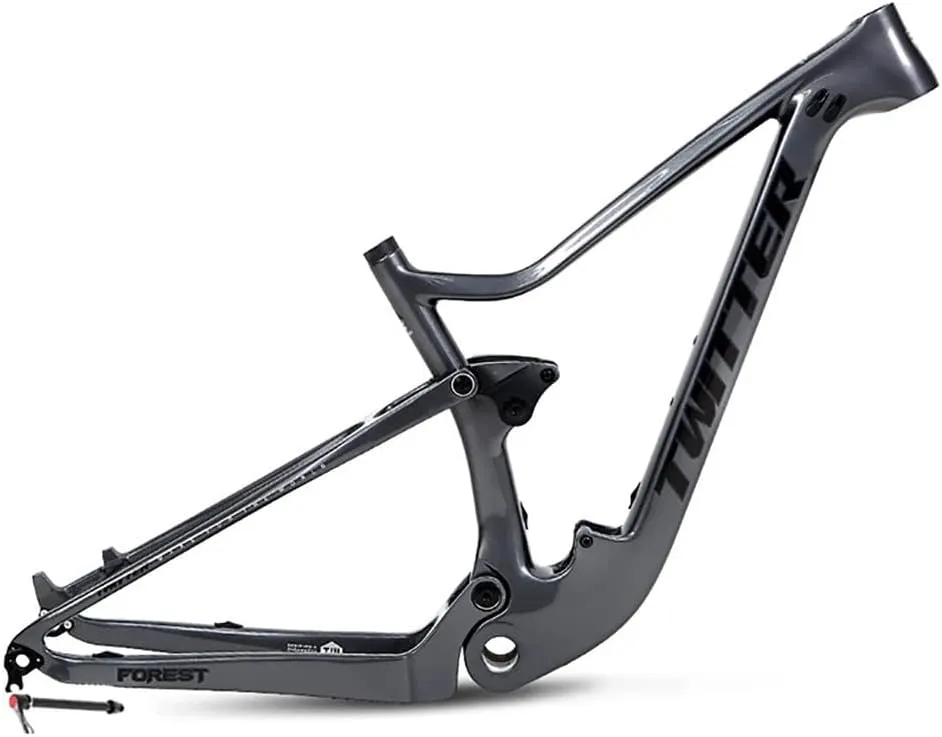

27.5/29er Suspension bike Frame Carbon Fiber Trail Mountain Bike Frame 15''/17''/19'' Travel 120mm XC/AM/DH Disc Brake Frame Boost Thru Axle 12x148mm
Model: bike suspension frame
Material : Carbon fiber

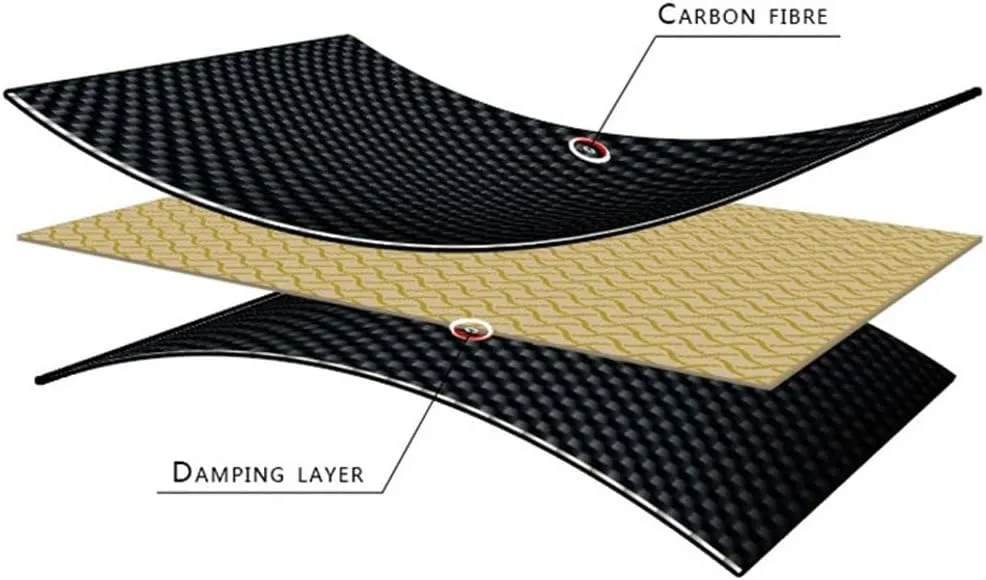

Technology:EPS technology
Frame size: 15''/17"/ 19"
Wheel size : for 27.5/29inch wheels
Frame travel: 120mm
Rear axle spacing: Boost Thru axle 12*148mm
Apply to tire max width : 27.5*3.0" or 29*2.35"
Brake: Disc Brake
Routing : Internal Routing
Level: XC, AM

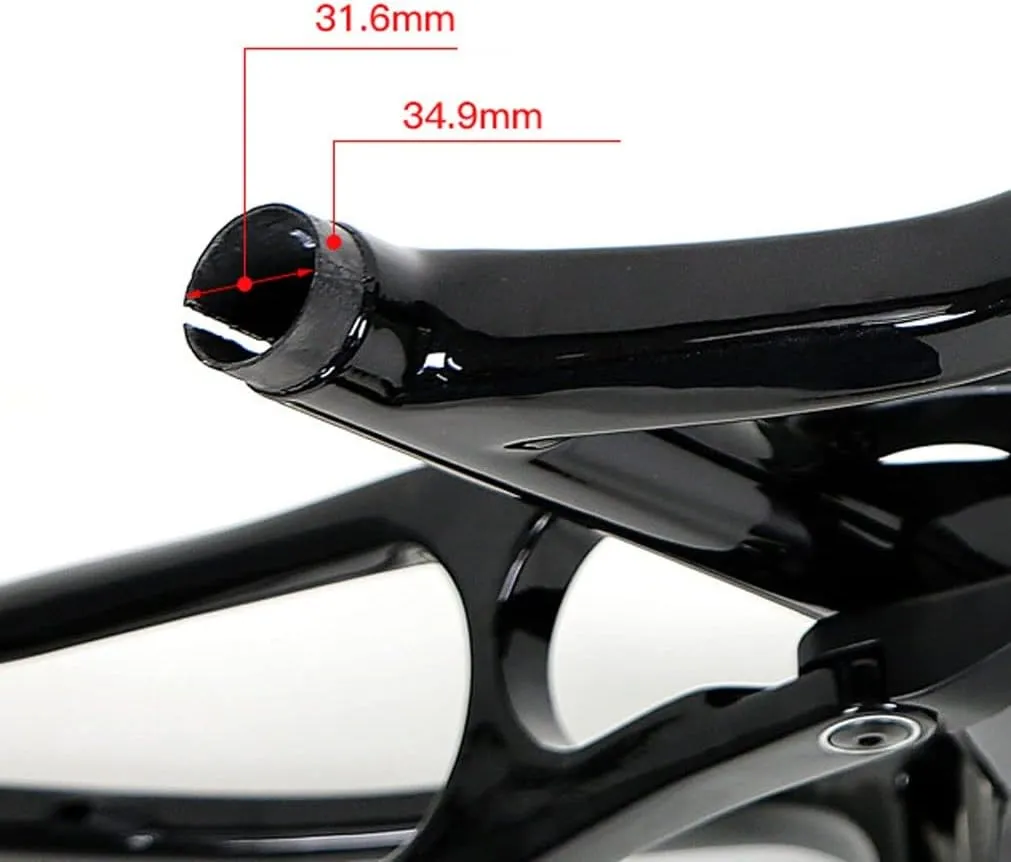

Seat post size: 31.6mm
Seat clamp size : 34.9mm

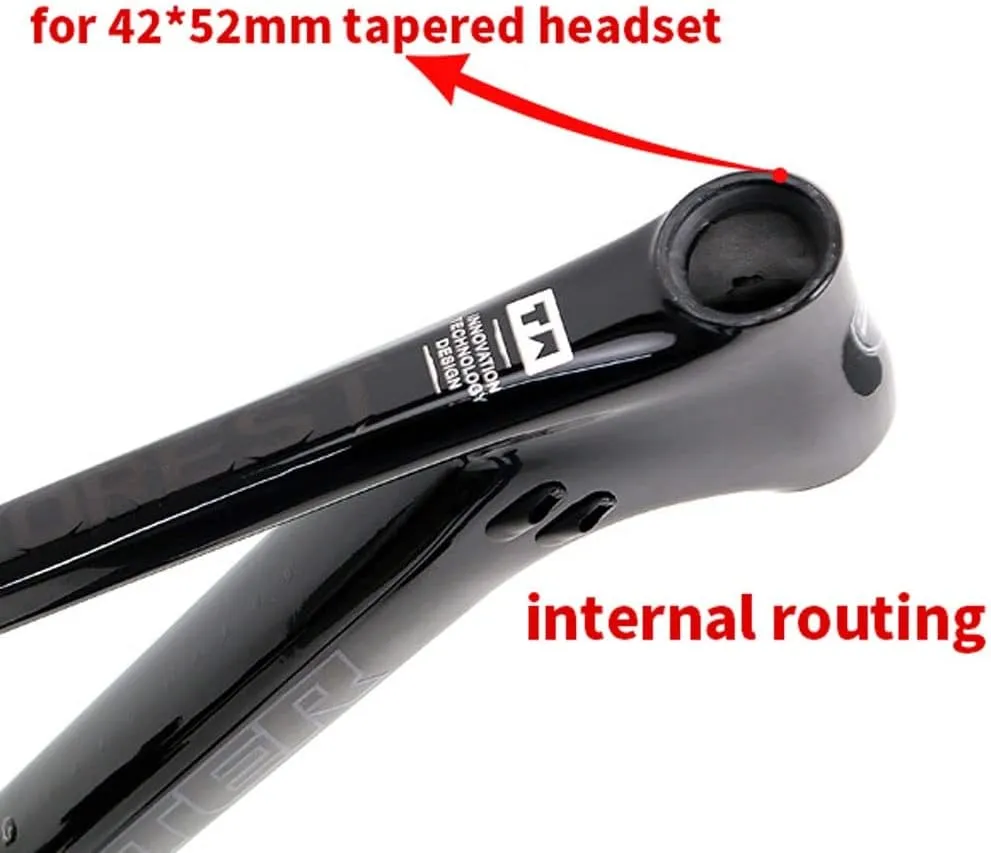

Head tube size: 42*52mm tapered headset

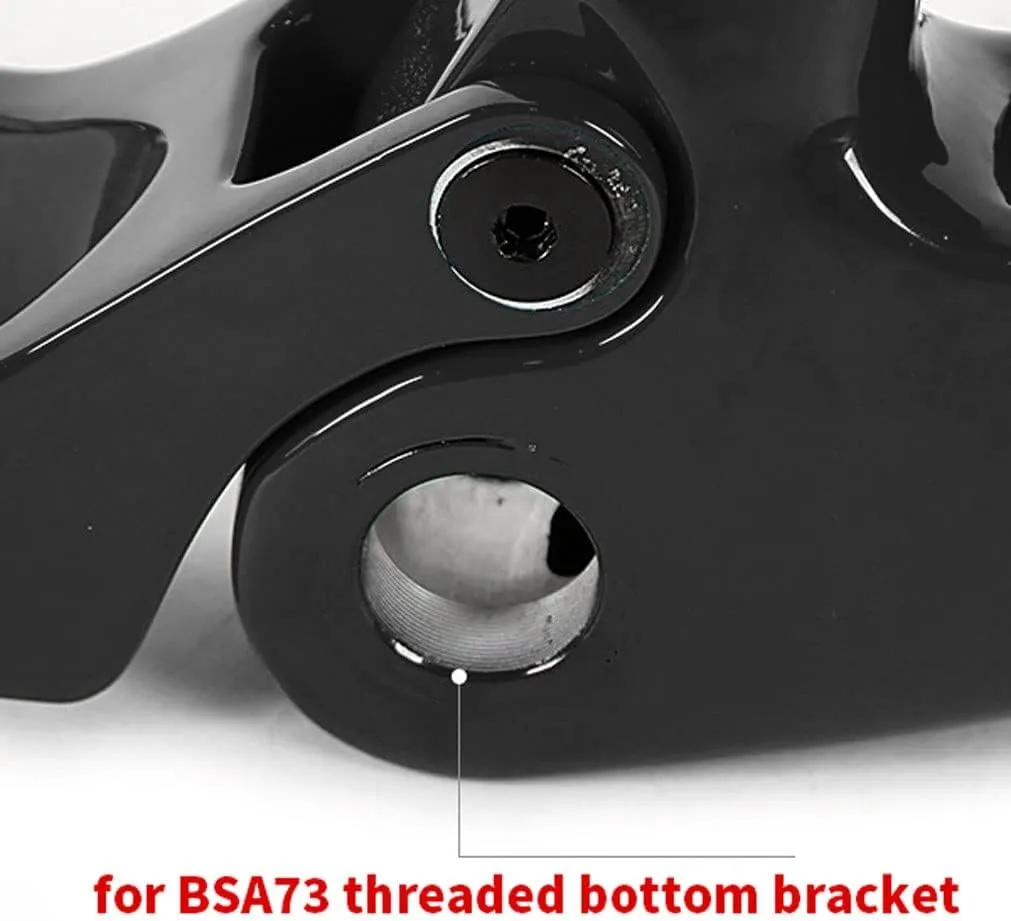

BB : for BSA73 threaded bottom bracket

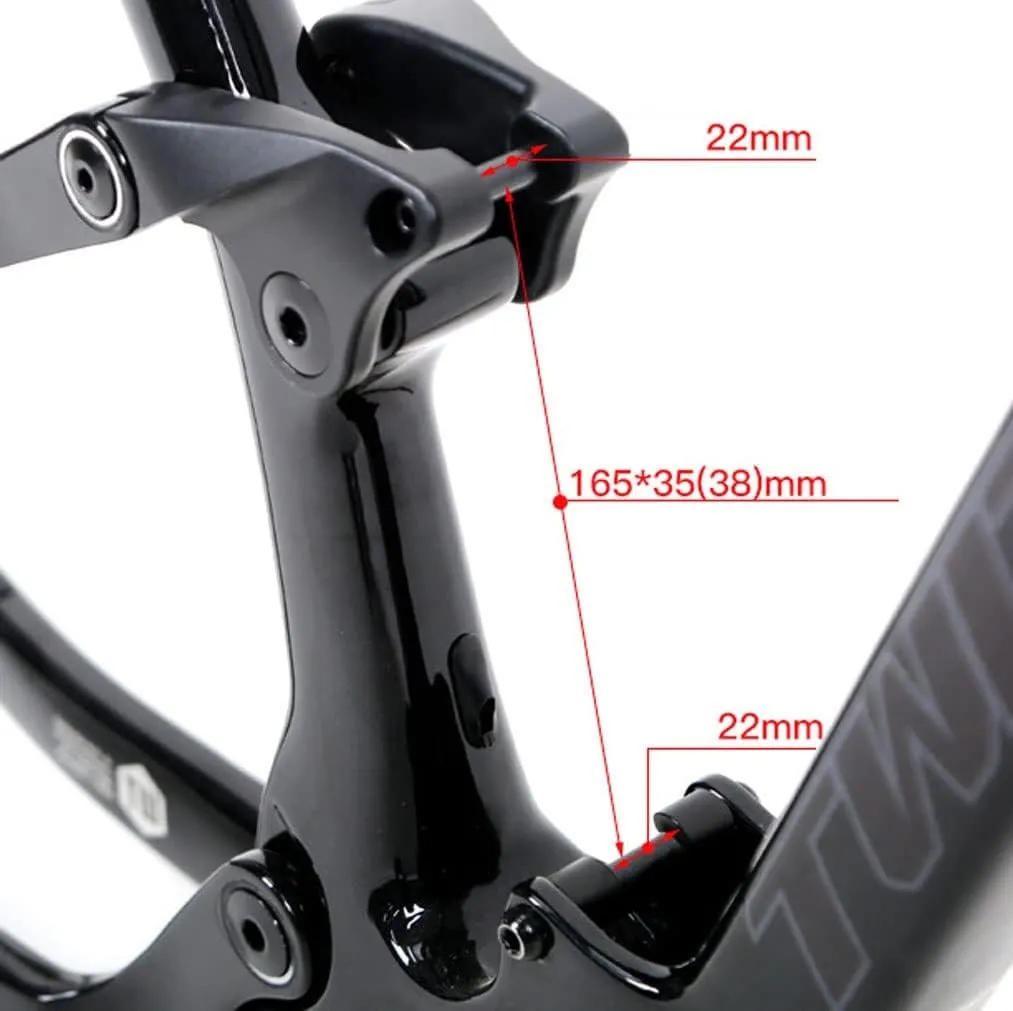

Rear shock: 165*35(38)* 24mm
Weight: Frame≈2250g(includes Rear shock)
Package content: frame, thru axle lever, tail hook
Note: Please check if the size of bike frame is correct before purchasing.
Service:If you have any product and service problems, please contact us and we will reply with you within 24 hours.
