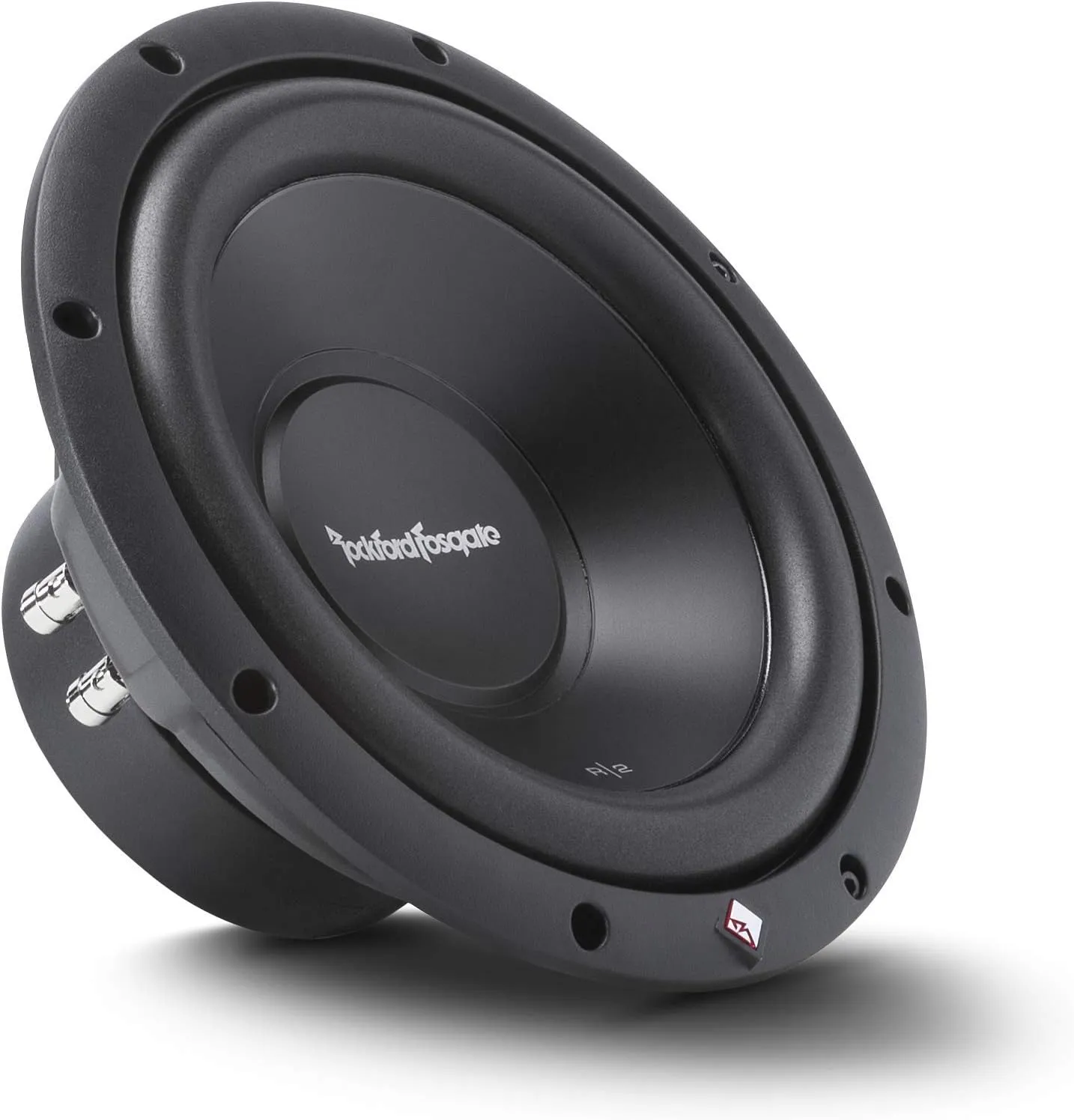

- Car Audio Fanatics wanting big bass can rely on the Rockford Fosgate Prime R2D4-10 Dual Voice Coil Subwoofer
- This 10" Prime Subwoofer rocks 250 Watts RMS / 500 Watts Max power handling and the 4-Ohm dual voice coils provide awesome installation flexibility
- The mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keeps the motor running cool while pumping out the bass
- These R2 subwoofers are optimized for sealed and vented enclosures with a required mounting depth of 4.319 inches and a cutout diameter of 9.125 inches
- Famous Rockford Fosgate build quality with a full 1-year warranty
Product Description
Since day one, we have spearheaded the car audio revolution. Nothing has changed. Rockford Fosgate is still the global leader in audio innovation and your passion is our purpose. We engineer the best audio systems for your lifestyle!
Amazon.com
Car Audio Fanatics who want Rockford Fosgate quality on a budget can rely on the Prime Series 10-inch subwoofers to get the job done, complete with a Dual Voice Coil for installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting--typically reserved for more expensive models--keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.
Rockford Fosgate Prime Series Subs
Rockford Fosgate pulled DNA from its big brothers to create the Prime series woofers. Parabolic cone designs result in solid bass reproduction and aluminum voice coils keep woofers running cool, even under demanding conditions. Straightforward mechanical designs mean you'll have solid performance for years to come. Add Prime woofers to any system and you'll "feel" the music you've been missing.
Rockford Fosgate quality on a budget. Mica injected polypropylene cone with poly-foam surround. Click here for a larger image Stamp-cast baskets with spider venting--typically reserved for more expensive models. Click here for a larger image
R2D4-10 Features
Speaker Construction
- 12 AWG compression terminals
- Anodized aluminum voice coil former
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone
- Optimized for both sealed and vented enclosures

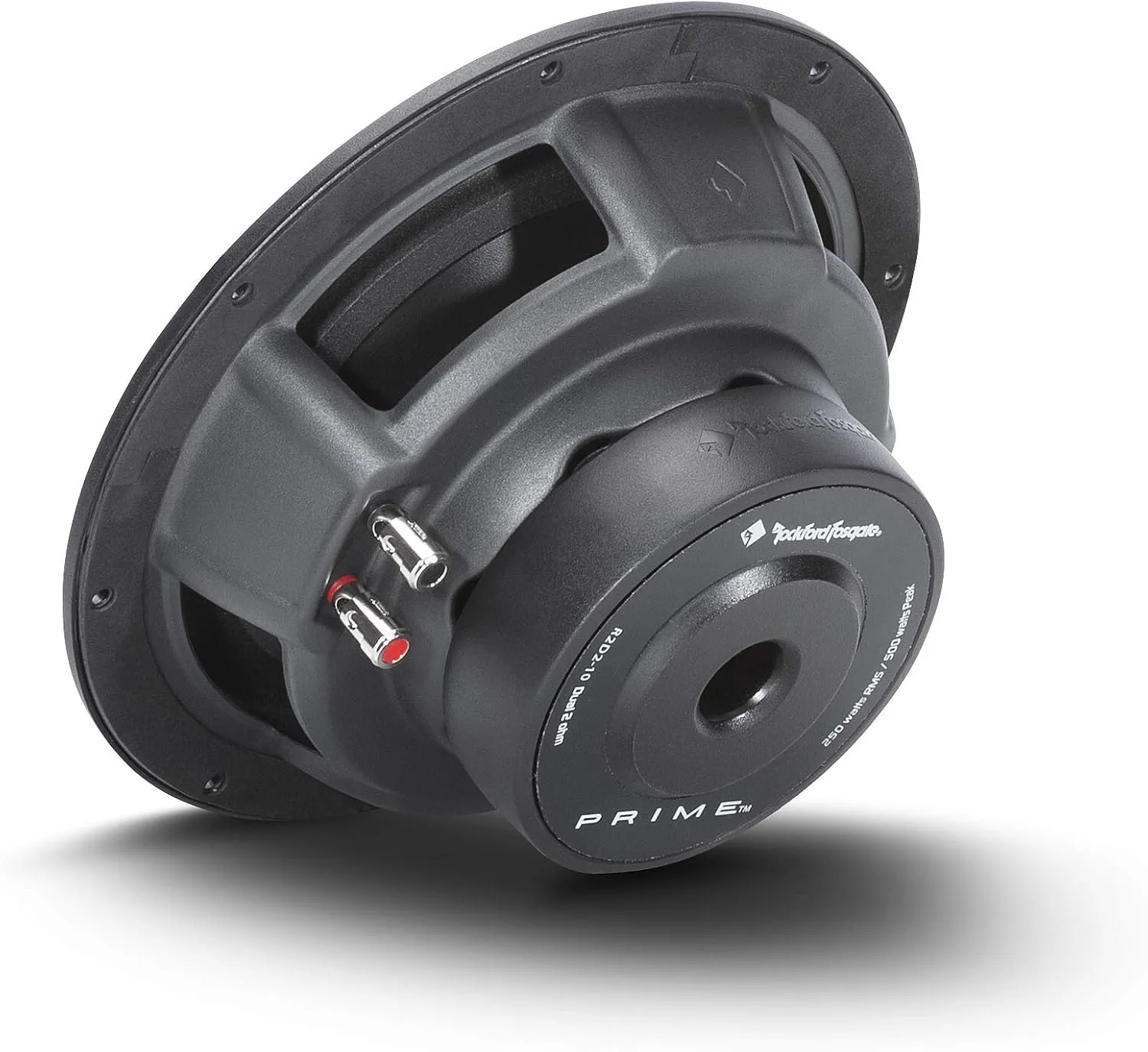

- StampCast basket with integrated spider venting
Anodized Aluminum Voice Coil Former
Two things generally happen when voice coils heat-up too much: they can generate heat close to the melt-down temp of their adhesive bonds, leading to eventual failure, or the voice coil DC resistance increases, thereby reducing SPL output.
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100 degrees at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.
These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.
About Rockford Fosgate
Setting the standard for excellence in the audio industry, the Rockford Corporation markets and distributes high-performance audio systems for the mobile audio aftermarket and OEM market. Headquartered in Tempe, Ariz., Rockford Corporation is a publicly traded company and manufactures its products under four brands: Rockford Fosgate, Rockford Acoustic Design, Lightning Audio and InstallEdge.com.
R2D4-10 Specifications
Size: 10 Inches Impedance: Dual 4-Ohm Power Handling: 250 Watts RMS
500 Watts Max Voice Coil Diameter: 2 Inches Speaker Connector: Dual 12 AWG compression SPL(1w/1m): 89 dB Woofer Displacement: 0.101" Cutout Diameter: 9.13 Mounting Depth: 4.33 inches
What's in the Box
Rockford Fosgate Prime R2D4-10 10-Inch DVC Subwoofer (Dual 4 Ohm), Documentation
- Is Discontinued By Manufacturer : No
- Product Dimensions : 13 x 7 x 13 inches; 8.5 Pounds
- Department : unisex-adult
- Date First Available : February 3, 2011
- Manufacturer : Rockford Fosgate
