- Multi : With lithium bottom voltage , over temperature , throttle loss and other multiple functions.
- Simple to Operate: Support automatic throttle travel adjustment, powerful BEC output capability, easy to use, especially for novices.
- Weatherproof: The ESC adopts one piece design (built in electrolytic capacitor) is completely and dustproof, adapting to various climatic environments.
- Wide Application: Brushed bidirectional ESC is suitable for 1/8 electric RV, electric offroad, short truck, large wheel vehicle, truck, , boat, etc.
- Light Weight: This RC brushed motor ESC has compact size, it is light weight, small size, easy to carry, ideal replacement for the RC vehicle.

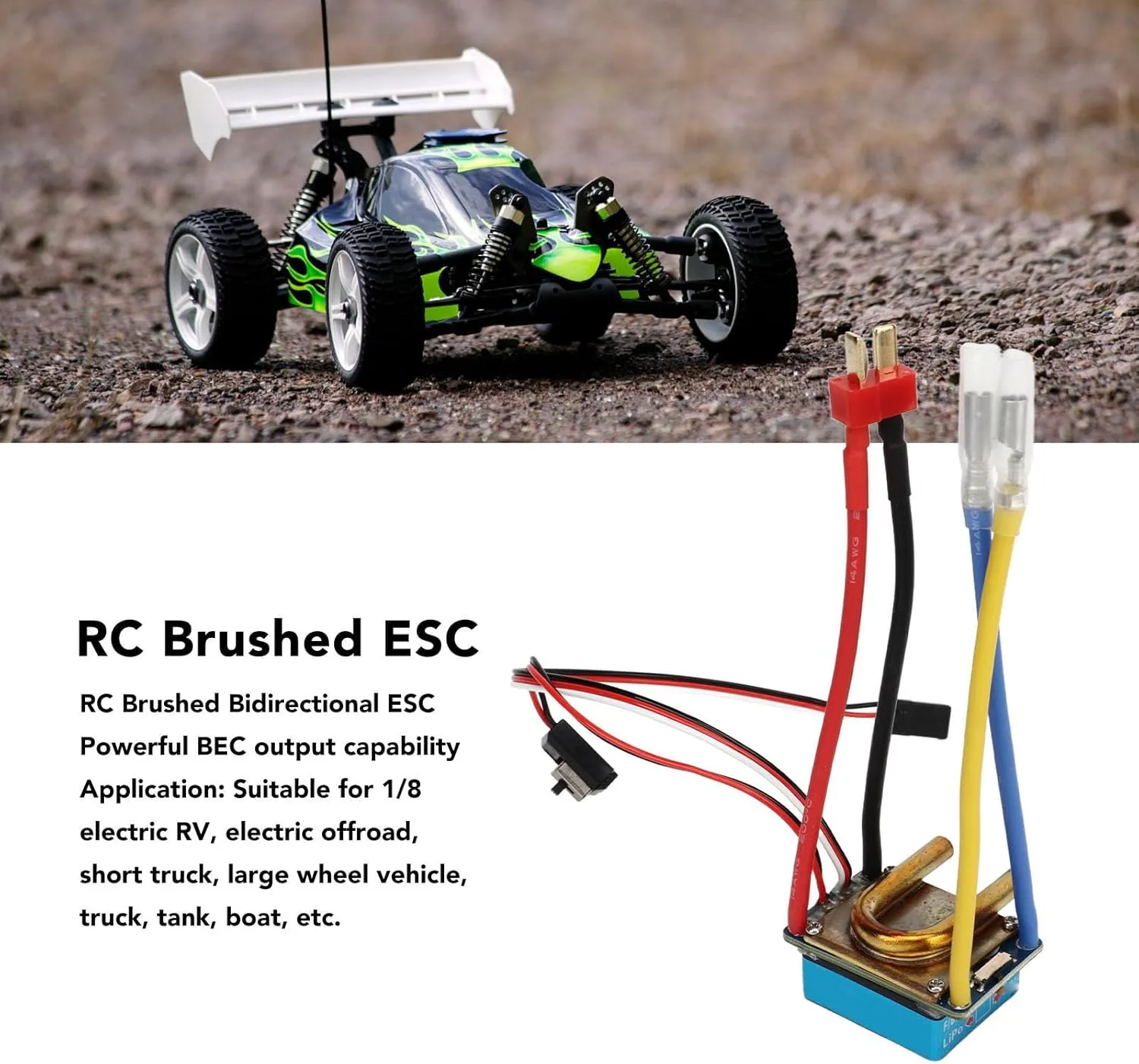

Item Type: RC Brushed ESC
Material: Aluminum alloy electronic components plastic
Motor Speed Range:
540, 550, 775 size motors ≥ 12T or RPM below 30000 at. 7.2V
540, 550, 775 size motors ≥ 18T or RPM below 20000 at. 7.2V
540, 550, 775 size motors ≥ 24T or RPM below 15000 at. 7.2V
Continuous/Instantaneous Current: 80A/480A
Applicable Motors: 380, 540, 550, 775 Brush Motors
Voltage Range: 2-4 Lithium (Lipo) Or 5-11 -Metal Hydride (NiMH) Batteries or 12V Batteries
BEC Output: 6V 3A
Application: Suitable for 1/8 electric RV, electric offroad, short truck, large wheel vehicle, truck, , boat, etc.
